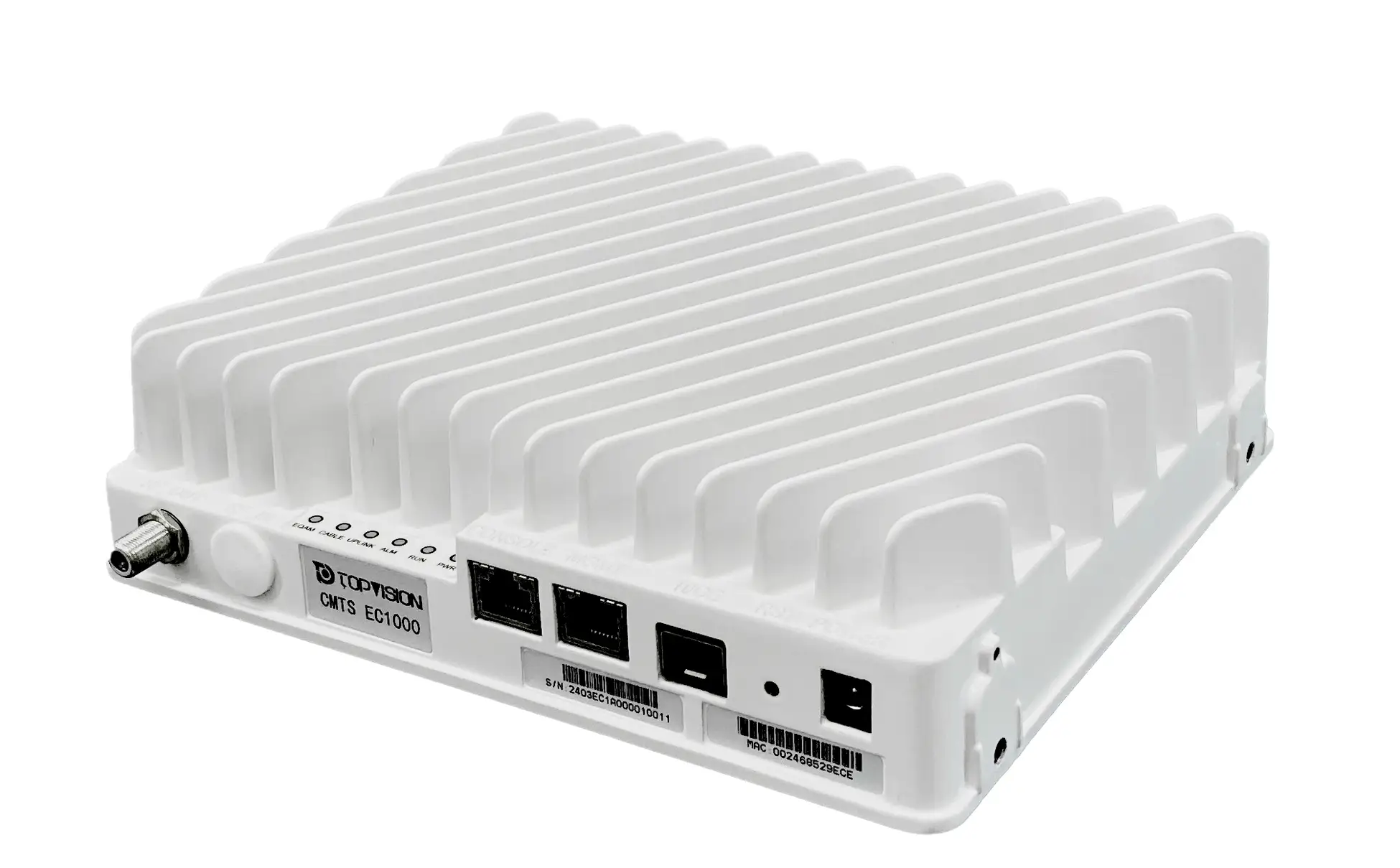

TOPVISION EC1000 32DS 8US

ca 8 Wochen

Preis auf Anfrage

Inhalt: 1 Stück

Lieferzeit ca 8 Wochen

EC1000 is a high-performance and cost-effective cable network edge device, which is designed... mehr

Produktinformationen "TOPVISION EC1000 32DS 8US"

EC1000 is a high-performance and cost-effective cable network edge device, which is designed based on
DOCSIS 3.0/ Euro-DOCSIS 3.0/ C-DOCSIS.

Product Features

Compatible with DOCSIS 3.0/ 2.0/ C-DOCSIS, thus the existing investment is protected
Support DAA/R-CCAP access architecture, support operation and management though remote distribute controller
Support up to 32*DS and 8*US
Provide maximum downstream rate of 1.6 Gbps and upstream rate of 200 Mbps
Support up to 64 CM are recommended, no need to change optical node
Support DOCSIS, PacketCable/PCMM, EQAM and Optical receiver, which can satisfy applications including internet, voice,
VoD and CATV application
More installation methods: supports corridor installation, wall-mounted
A variety of management and maintenance modes: support CLI/standalone Web/ EMS, and other management modes
Optional: DOCSIS/EQAM function

Specifications	Description
Sandard	DOCSIS 3.0/Euro-DOCSIS 3.0
	DOCSIS 2.0/Euro-DOCSIS 2.0
	C-DOCSIS
SNI	1*10GE SFP+
Management interface	1*MGMT RJ45 management interface
	1*RJ45 console interface
CM Qty. supported
DOCSIS 3.0 & 2.0	≤64
Working Channel	DS	US
Channel frequency range
European standard	87 / 108 ~ 1006MHz	5 ~ 65 / 85MHz
Working channel	32	8
Channel width	6/8MHz	1.6/3.2/6.4MHz
Communication protocol	/	ATDMA
Modulation mode	64/256/1024 QAM	QPSK,16/32/64/256 QAM
Reception level range	/	-7-+23dBMV@6.4MHz
		-10-+20dBmV@3.2MHz
		-13-+17dBmV@1.6MHz
MER	≥35dB (Equalizer off)
	≥43dB (Equalizer on)
Maximum output power level	104dBuV@32channels

Specifications	Description
Sandard	DOCSIS 3.0/Euro-DOCSIS 3.0
	DOCSIS 2.0/Euro-DOCSIS 2.0
	C-DOCSIS
SNI	1*10GE SFP+
Management interface	1*MGMT RJ45 management interface
	1*RJ45 console interface
Dimension	227mmx225x61mm
Product form	Cast aluminium half shell, port exposed
Weight	<3kg (rough weight)
Ingress protection ratin	IP20
Operating temperature	0~40℃
Operating humidity	10%-90% (non-condensing)
Power supply	Local power supply
Power consumption	<40W
Device groundiing	PGND
LED indicators	Support
Optional status monitoring and control	Support

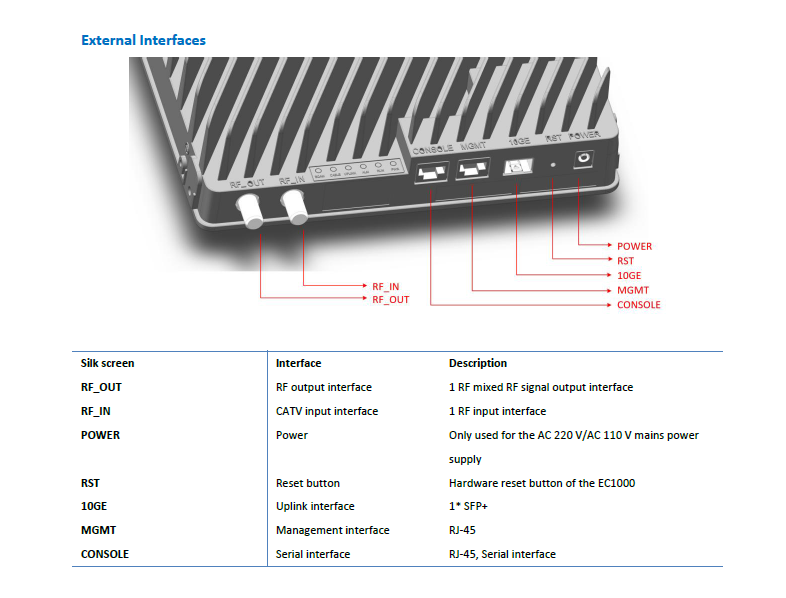

Number of ports
Power suppply port	1
RF out port	1
RF in port	1
Frequency division	65/87MHz, 85/108MHz
Output impedance	75ohm
Default RF port type	F-type
