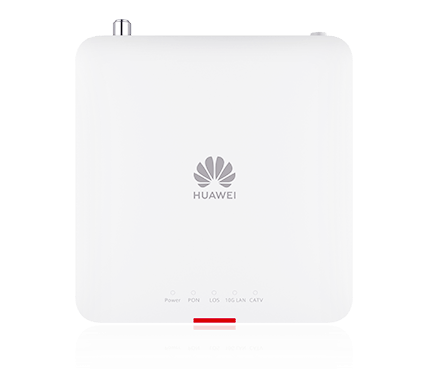

Huawei OptiXstar HN8012Ts-20 XGS-PON CATV ONT

ca 2 Wochen

Preis auf Anfrage

Inhalt: 1 Stück

Lieferzeit ca 2 Wochen

ONT Huawei HN8012T2-20 | 1x port 10GE XGS-PON 1x CATV Technische Daten NNI... mehr

Produktinformationen "Huawei OptiXstar HN8012Ts-20 XGS-PON CATV ONT"

ONT Huawei HN8012T2-20 | 1x port 10GE XGS-PON 1x CATV

NNI	XGS-PON

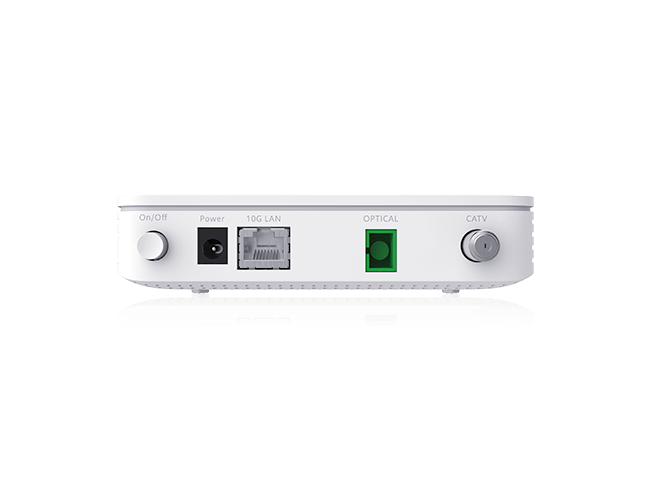

LAN Ports	1* 10GE Auto-adaptive 10000Mbit/s, 5000Mbit/s, 2500Mbit/s,1000Mbit/s, 100Mbit/s
Optical Conector	SC/APC
CATV port	Frequency Range 54 MHz to 1000 MHz
Type	Routing
Abmessungen (H x L x B)	32 x 135 x 140 mm
Gewicht	<235 g
Relative Luftfeuchtigkeit	0% a 95% RH (non-condensing)
Betriebstemperatur	0º to 40º C
System-Stromversorgung	12V DC, 1 A
Eingang-Netzteil	100-240 V AC 50/60 Hz
Standby	2.8 W
Max.	5.5 W


XGS-PON port.	• Class N1/N2/E1 • Receiver sensitivity: -27 dBm ~ -29 dBm • Wavelengths: 1260-1280 nm upstream, 1575-1580 nm downstream • Wavelength blocking filter (WBF) • Flexible mapping between GEM Port and TCONT • SN/Password/SN+Password/Bi-directional authentication based on OMCI • Upstream and downstream FEC • SR-DBA and NSR-DBA • Upstream and downstream rate: 9.953 Gbit/s upstream,9.953 Gbit/s downstream
Ethernet port	• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Auto-adaptive 10000Mbit/s, 5000Mbit/s, 2500Mbit/s,1000Mbit/s, 100Mbit/s
CATV port	• Frequency Range 54 MHz to 1000 MHz • Output resistance 75 ohms • Received average optical power: -8 dBm to +2 dBm • RF output power: ≥17dBmV/Ch (With RF source analog channel power input = 20dBmV/ch, and 40 analog / 63 digital channels (4.3% OMI analog, 2.15 % digital))
